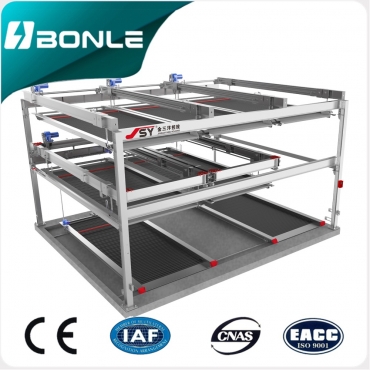

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information THREE-LAYER LIFT-SLIDING MECHANICAL PARKING SYSTEM Product model PSH 3-JSY Equipment Size L (MM) 6000 6300 6000 5700 5400 W (MM) 2450 2500 2450 2400 2350 H (MM) 2250 1700 1700 1600 1600 Dimensions of vehicle suitable for parking Vehicle  type SUV PC/over size PC/L PC/Me PC/C L (MM) 5000 5300 5000 4700 4400 W (MM) 1850 1900 1850 1800 1750 H (MM) 2050 1550 1550 1450 1450 Weight (KG) 1850 2350 1700 1500 1300 Parking Capacity 3 Layers Drive Motor chain 2.2KW~2.2KW Lifting Speed (m/min) 5.5 m/min Sliding Speed (m/min) 8 m/min Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us

Simple Valet Parking

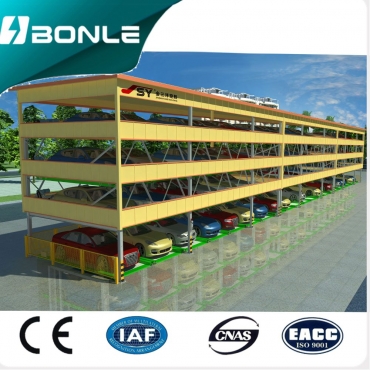

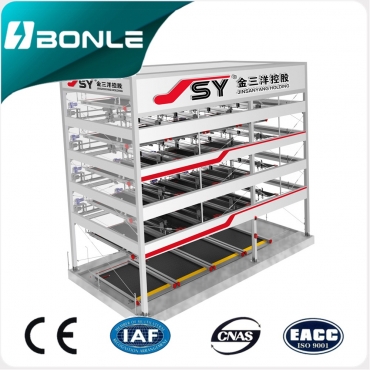

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information Multilayer Lift Sliding Mechanical Parking System Product model 4-Storey 5-Storey 6-Storey Equipment Size L (MM) 6000 6300 6000 5700 5400 W (MM) 2500 2600 2500 2450 2400 H (MM) 2250 1700 1700 1600 1600 Dimensions of vehicle suitable for parking Vehicle Type SUV PC/over size  PC/L PC/Me PC/C L (MM) 5000 5300 5000 4700 4400 W (MM) 1850 1900 1850 1800 1750 H (MM) 2050 1550 1550 1450 1450 Weight (KG) 1850 2350 1700 1500 1300 Parking Capacity Four Layer 4xn-3 Five Layer 5xn-4 Six Layer 6xn-5 Drive Motor Power 2.2KW~2.2KW Lifting Speed (m/min) 5.5 m/min Sliding Speed (m/min) 8 m/min Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us

Simple Valet Parking

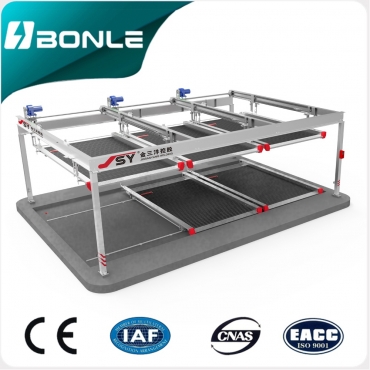

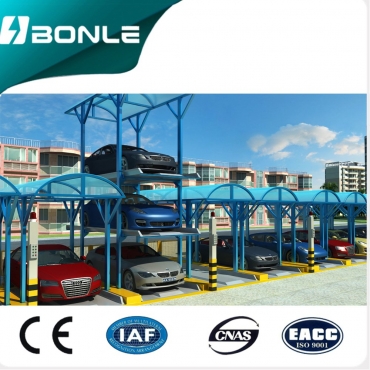

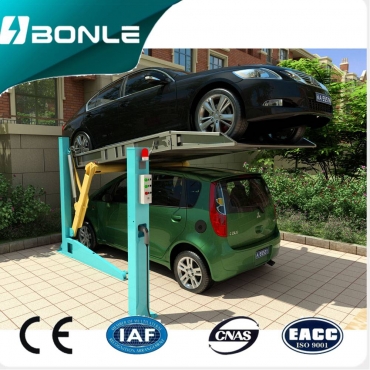

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information Parking Lift Product model 2-Storey 3-Storey 4-Storey Equipment Size L (MM) 5450 5750 5450 5150 4850 W (MM) 2600 2700 2600 2600 2500 H (MM) 2150 1850 1850 1750 1750 Dimensions of vehicle suitable for parking Vehicle Type SUV PC/over size  PC/L PC/Me PC/C L (MM) 5000 5300 5000 4700 4400 W (MM) 1850 1900 1850 1800 1750 H (MM) 2050 1550 1550 1450 1450 Weight (KG) 1850 2350 1700 1500 1300 Parking Capacity Two-Layer2xN(N-Common Number) Three-Layer3xN(N-Common Number) Four-Layer4xN(N-Common Number) Drive Motor Power 2.2KW/3.7KW/5.5KW Lifting Speed (m/min) 2.6m/min Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information (Minus-two&plus-four)six-layer lift-sliding mechanical parking system Equipment Size L (MM) 6000 6300 6000 5700 5400 W (MM) 2600 2600 2600 2500 2500 H (MM) 2250 1600 1500 1500 1500 Dimensions of vehicle suitable for parking Vehicle Type SUV PC/over size  PC/L PC/Me PC/C L (MM) 5000 5300 5000 4700 4400 W (MM) 1850 1900 1850 1800 1750 H (MM) 2050 1550 1550 1450 1450 Weight (KG) 1850 2350 1700 1500 1300 Parking Capacity 4-25Car/Nuit Drive Motor Power 2.2KW~2.2KW Lifting Speed (m/min) 5.5 m/min Sliding Speed (m/min) 8 m/min Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us

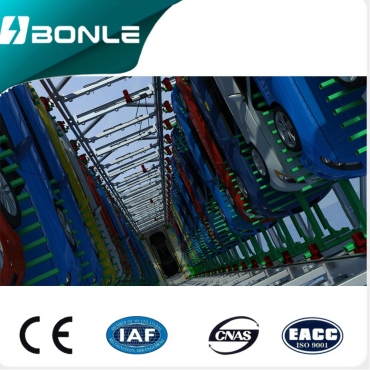

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information Comb Finger Vertical Lifting Mechanical Parking System Equipment Size L (MM) ≤5000 W (MM) ≤1850 H (MM) ≤1550/2050 Weight（KG） ≤2000 Parking Capacity 50Cars Drive Lifting Speed (m/min) 60~110m/min Sliding Speed (m/min) 20m/min Lift Motor Power 18.5~30KW Sliding Motor Power 0.2KW Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us

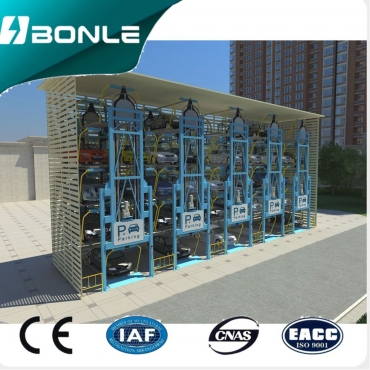

Product Description Product Application Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem. Information Multi-Floor Circulating Type Automatic Parking System Equipment Size L (MM) ≤5000 W (MM) ≤1850 H (MM) ≤1550/2050 Weight（KG） ≤2000 Parking Capacity 8Cars/10Cars/12Cars Circulating Speed (m/min) 6m/min Motor Power 15KW Features Show Advantage Advantage 1.Steel Selection: Large-scale steel ，solid steel design 2.Installarion Technology: High strengh bolt , long-lasting life 3.Restrictor:Resonable design with external contracting holding for tires,  preventing slidding 4.Motor Position: Hiding motor , convenient usage Contact Us
