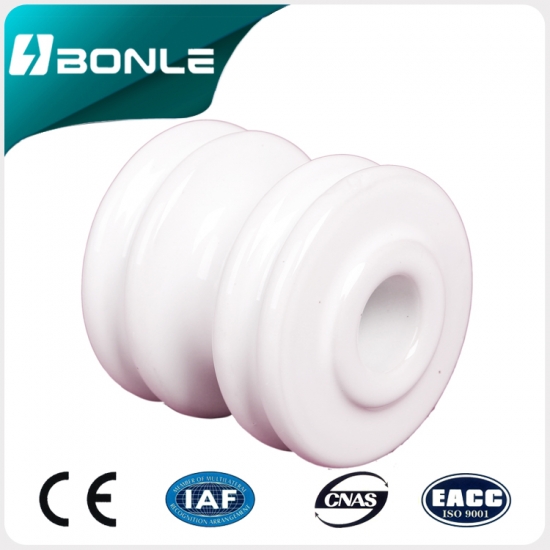

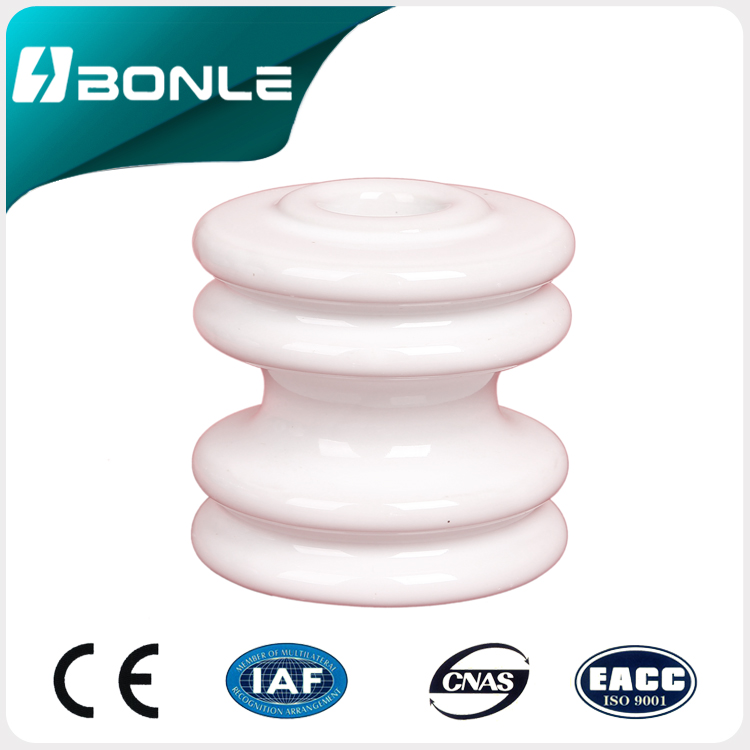

Ceramic spool insulator 53-4 white

Features

Material: Porcelain
Application: High Voltage
ANSI C29-3
IEC 60383
BONLE BRAND or OEM for first level utitly in world

MAIN DIMENSIONS AND STANDARD PARTICULARS

1. Low  fiashover voltage
   1)  Dry  frequency                                  25KV
   2)  Wet  frequency
        Vertical                                             12KV
        Horizontal                                         15KV
2. Mechanical failing load                          13.3kN
3. QTY/CTN                                           60pcs
4. G.W./N.W.                                          34/32 kg
5. MEAS.                                            43X35X27cm
