Porcelain Suspension Disc Insulator 52-3 | Porcelain Disc Insulators

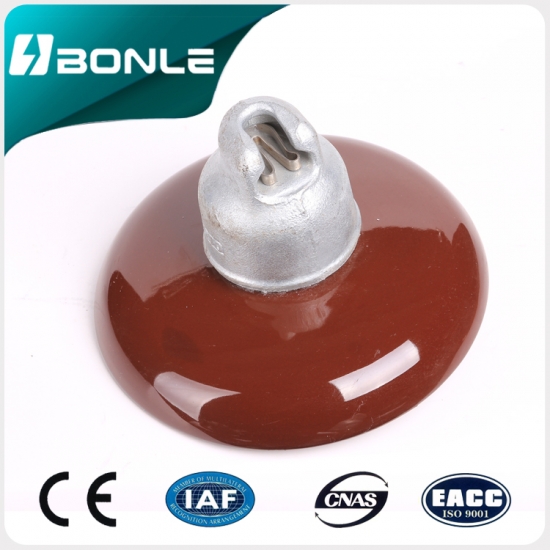

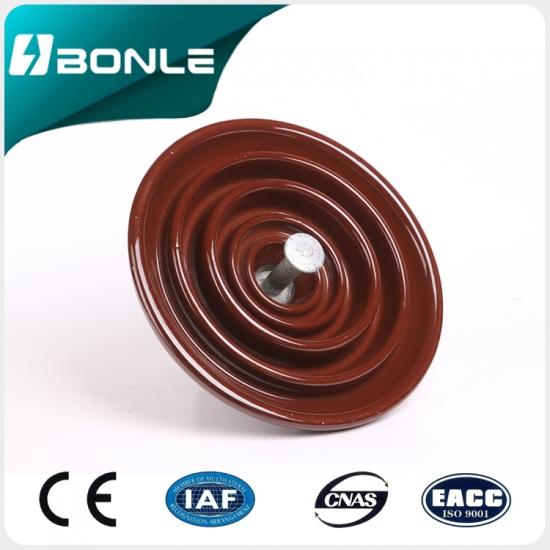

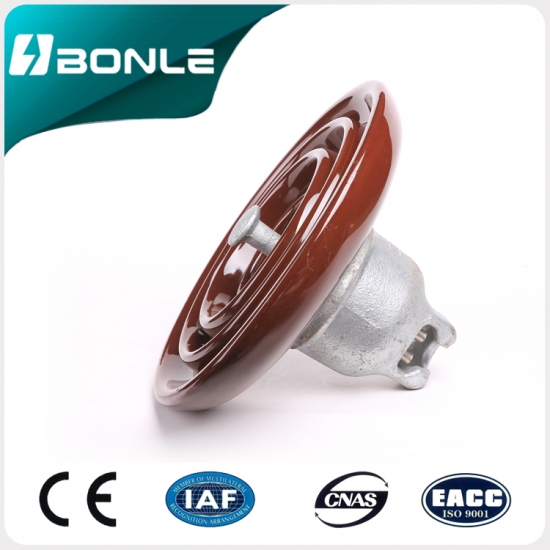

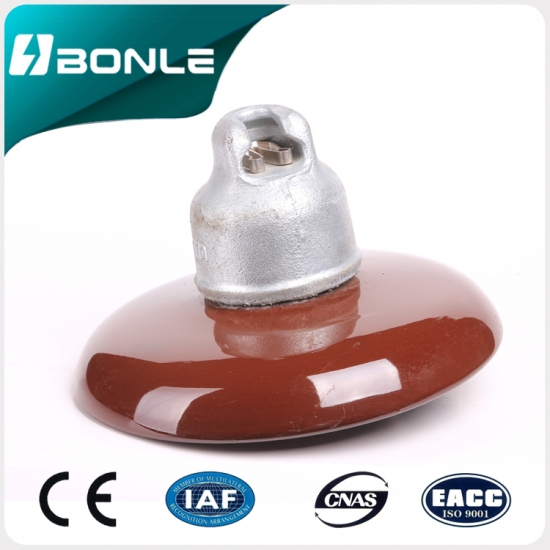

Porcelain Suspension Disc Insulator 52-3

High quality standard(IEC,BS,ANSI,AS,DIN,GB)
Competitive price
ISO9001:2008/ISO14001:2004/GB/T 28001-2011/

Product Origin:
china
Brand:
BONLE
Item No.:
52-3
Shipping Port:
FUZHOU PORT
Color:
Brown or grey
Lead Time:
30days

Get Free Drawing&Quote Now

DESCRIPTION
PARAMETERS

Porcelain suspension insulator disc insulator 52-3

insulator 52-3

52-3 insulator

The porcelain insulator is used on substation & transmission Line. It helps to support and hand wire, insulation wires against tower.

Porcelain Suspension Insulator is designed to give unparalleled performance and reliability.

Advantage:
1, Strong aging resistance
2, Long service life
3, Reasonable price
4, Porcelain uniform
5, Nice Appearance
6, Superior properties of high and low temperature resistance,mechnical capability, electrical function.

Buy Disc Insulators online from China. We are supply high voltage electrical product at best price. Order Now!

Standard particulars

CLASS ANSI				52-3
Main Dimension(mm)		D		254
		H		146
Creepage distance/mm				292
Power-frequency puncture Voltage(KV)				110
Average flashover voltage	Power-frequency		Dry (KV)	80
			Wet(KV)	50
	Critical-Impulse 15*40us Wave		Positive (KV)	125
			Negative(KV)	130
Radio-influence voltage		Test voltage to ground (KV)		10
		Maximum RIV at 1000Khz(kv)		50
Electromechanical Load/KG				6750
Mechanical Impact Strength/in-16				55
Time Load Test Value/KG				4500
Weight(kg)				4.6

ANSI 52 Series Disc Suspension insulator for hot sale:

ANSI CLASS			52-1	52-2	52-3	52-4	52-5	52-6	52-8	52-9	52-9	52-10
Fig. No.			1	2	3	4	3	4	3	5	6	4
Main Dimensions (mm)	D		165	190.5	254	254	254	254	280	114	133	280
Main Dimensions (mm)	H		140	146	146	146	146	146	146	159	159	165
Leakage Distance/mm			178	210	292	292	292	292	280	171	171	280
Power-Frequency Puncture Voltage kV			80	90	110	110	110	110	110	80	80	110
Average Flashover voltage	Power Frequency	Dry/kV	60	65	80	80	80	80	80	60	60	80
	Power Frequency	Wet/kV	30	35	50	50	50	50	50	30	30	50
	Critical-Impulse 1.5x40us Wave	Positive/kV	100	115	125	125	125	125	125	110	110	125
	Critical-Impulse 1.5x40us Wave	Negative/kV	100	115	130	130	130	130	130	90	90	130
Radio-Influence voltage	Test Voltage to ground/kV		7.5	7.5	10	10	10	10	10	7.5	7.5	10
Radio-Influence voltage	Maximum RIV at 1000kHz/uV		50	50	50	50	50	50	50	50	50	50
Rated E&M Failing Load/kN			44	70	70	70	111	111	160	44	44	160
Tension Proof Load/kN			22	35	35	35	55.5	55.5	80	22	22	80
Impact Strength/N.m			5	5.5	6	6	7	7	10	5	5	10

Production process

Quality control

Standard particulars

CLASS ANSI				52-3
Main Dimension(mm)		D		254
		H		146
Creepage distance/mm				292
Power-frequency puncture Voltage(KV)				110
Average flashover voltage	Power-frequency		Dry (KV)	80
			Wet(KV)	50
	Critical-Impulse 15*40us Wave		Positive (KV)	125
			Negative(KV)	130
Radio-influence voltage		Test voltage to ground (KV)		10
		Maximum RIV at 1000Khz(kv)		50
Electromechanical Load/KG				6750
Mechanical Impact Strength/in-16				55
Time Load Test Value/KG				4500
Weight(kg)				4.6

Inquire

Related Tags :

Porcelain Disc Insulator porcelain suspension insulator Disc Insulator Porcelain Insulator 52-3
