Cable Lug Crimp Terminal Tools

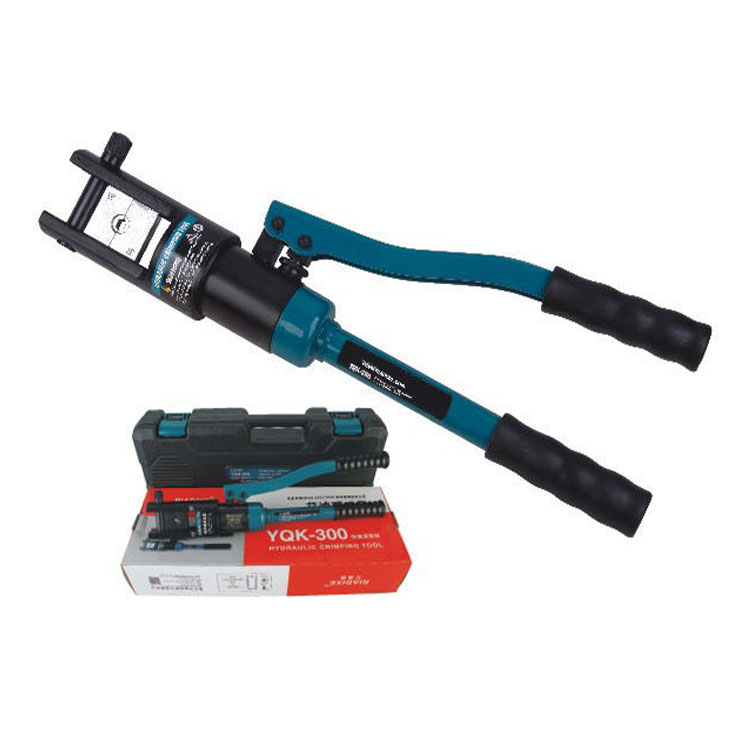

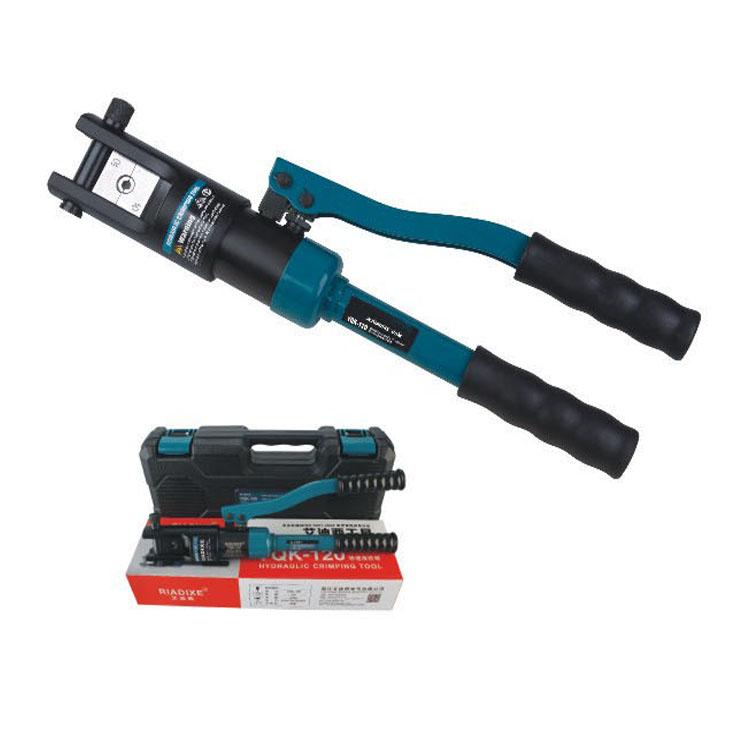

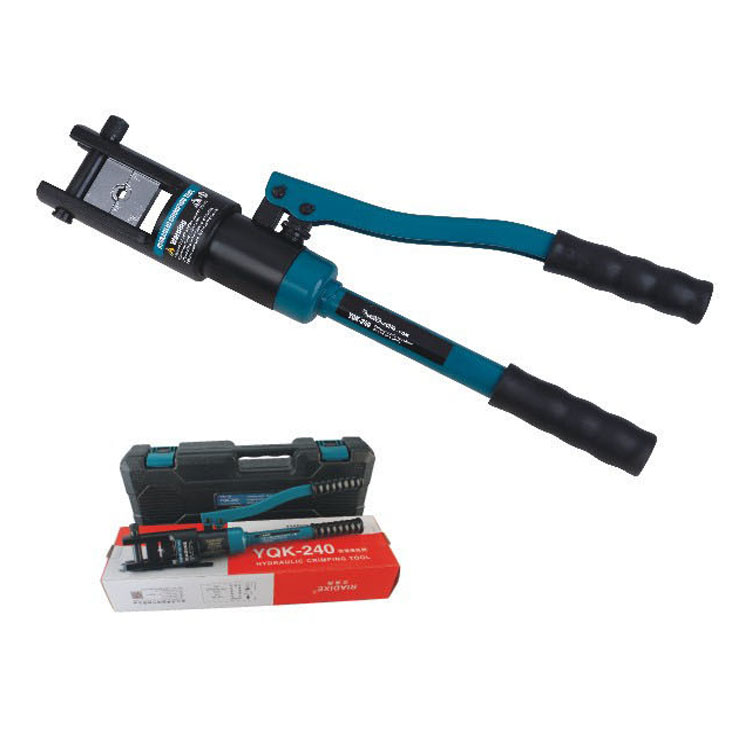

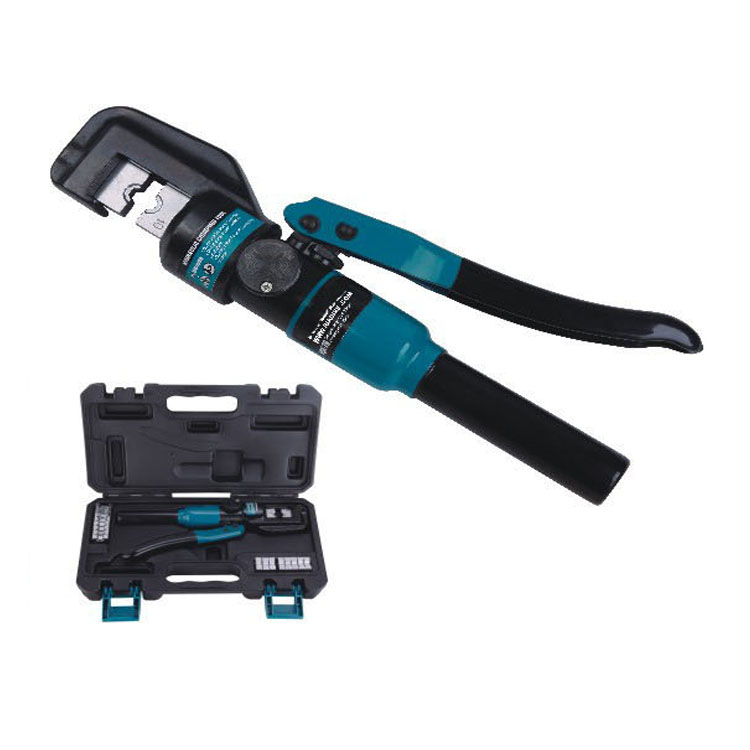

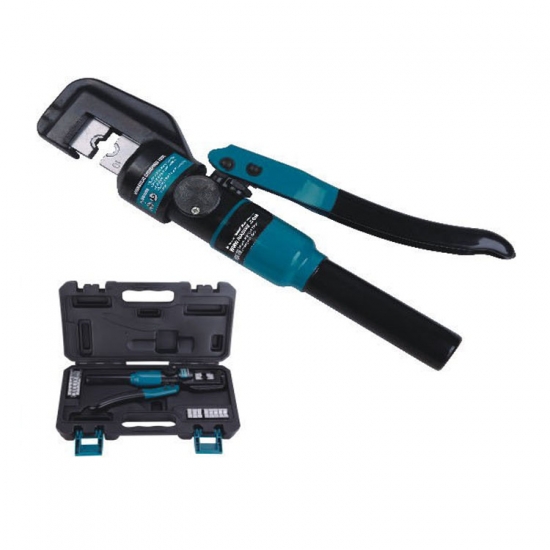

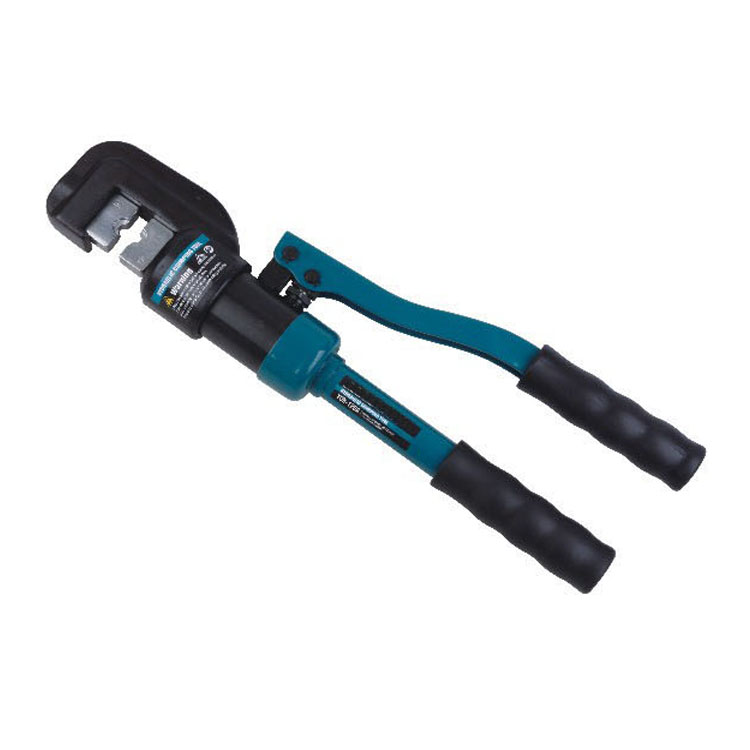

Cable Lug Crimp Terminal Tools Hydraulic Crimper Tool For 10-300mm2

1,one head for crimping,cutting and punching

2,universal head rotates 350°,flip top style

3,two stage hydraulics

4,Automatic pressure release when crimp is complete

5,Manual retract after working

  • Product Origin:

    China
  • Brand:

    BONLE
  • Item No.:

    YQK
  • Shipping Port:

    FUZHOU
  • Lead Time:

    15DAYS
  • Payment:

    fob or cnf
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

Cable Lug Crimp Terminal Tools Hydraulic Crimper Tool For 10-300mm

TECHNICAL DATA:

 Type YQK-120  YQK-240 YQK-300   YQK-70  YQK-120A
 Working force  60KN  70KN  70KN  45KN  60KN
 Stroke  13mm  18mm  18mm  11mm  13mm
 Crimping range Cu 10-120mm  Cu 16-240mm  Cu 10-300mm  Cu 4-70mm  Cu 10-120mm
 Length 415mm  475mm  475mm  310mm  415mm
 Weight  approx.2.8kg  approx.3.6kg  approx.3.6kg  approx.1.8kg  approx.3.2kg
 Weight of box  0.9kg  1.8kg  1.8kg 1.1kg  0.9kg
 Package  plastic box   plastic box  plastic box  plastic box   plastic box

ACCESSORIES:

 Crimping dies  4mm2-300mm2
 Sealing O-ring  one set

FEATURES:

Hydraulic  crimping tool is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4mm² to 1000mm² to suit for different size demand.The main crimping shape is hexagonal,special shape design is provided.

Cable Lug Crimp Terminal Tools Hydraulic Crimper Tool For 10-300mm2Cable Lug Crimp Terminal Tools Hydraulic Crimper Tool

 Cable Lug Crimp Terminal Tools

Hydraulic Crimper Tool For 10-300mm2

Cable Lug Crimp Terminal Tools For 10-300mm2

Product Advantage
  Product Advantages


  Production Process


  QC Flow


     Company Information








About Us





BONLE Group professionally in power electronics manufacturing and export for many years. Till now sized with 7 factories for different product series. And build a long-term and close collaborative relationship with more than 30 Chinese domestic suppliers, which assures supplying completely for the substation and transmission lines project. Below we have 3 main business channels for different cooperations

1. General order business.

2. International tenders.

3. Substation &Transmission line construction projects.




Annual output value

over fifty million dollars

Production Cycle

40-90 days(base of different product and order quantity.)

Number of workers

1,000 workers

Plant area

360,000 square meters

  Qualification Certificate


  Exhibition


  BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers.
FAQ
     FAQ

1.Are you factory? Where is the location?

Yes: Office and Factory Address is like below:

91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008



2.What is your main product?

We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket. dpn defond push button switch. We can accept OEM.



3.When was your company established? How many production lines do you have at present? How many employees?

Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).



4.Where is your major customer?

Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,
