hydraulic crimping tool

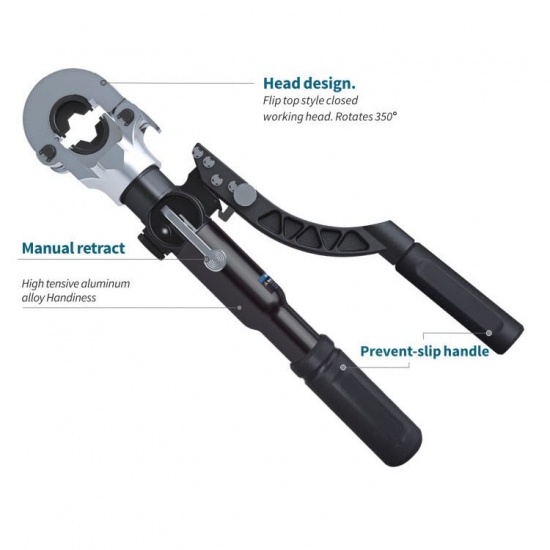

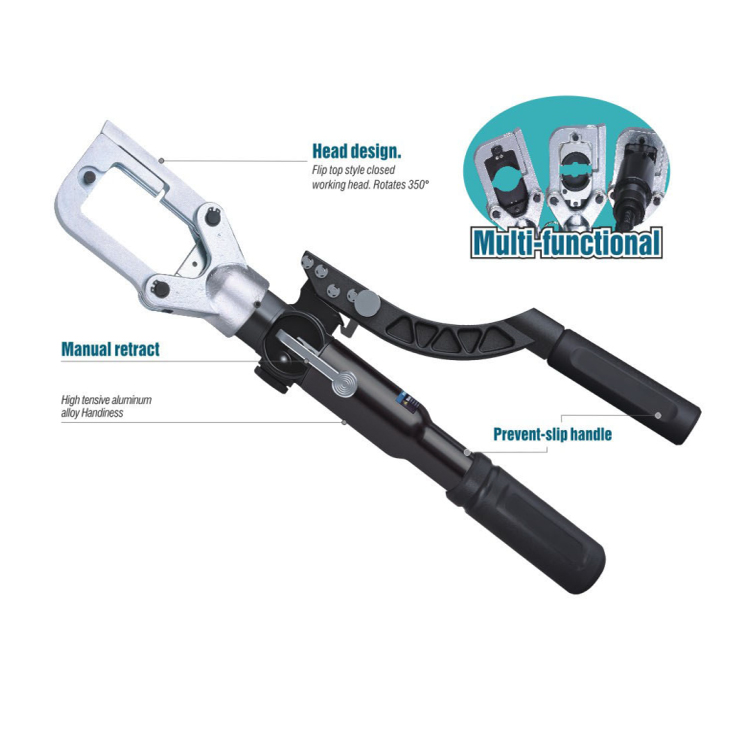

Multi-functional hydraulic crimping tool

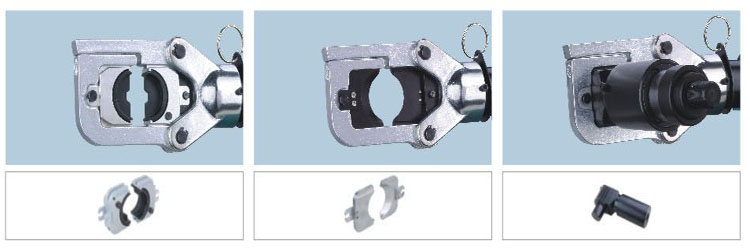

1,one head for crimping,cutting and punching

2,universal head rotates 350°,flip top style

3,two stage hydraulics

4,Automatic pressure release when crimp is complete

5,Manual retract after working

  • Product Origin:

    China
  • Brand:

    BONLE
  • Item No.:

    HZ-60UNV HZ-300 HZ-4
  • Shipping Port:

    FUZHOU
  • Lead Time:

    15DAYS
  • Payment:

    fob or cnf
Get Free Drawing&Quote Now
  • DESCRIPTION
  • PARAMETERS

Multi-functional hydraulic crimping tool HZ-60UNV HZ-300 HZ-400 HZ-400U

TECHNICAL DATA:

 Type HZ-60UNV
 Working force  60KN
 Stroke  42mm
 Crimping range Cu 16-300mm², Al10-240mm²
 Cutting range Φ40mm for Cu/Al cable
 Punching range  Φ22.5-61.5mm in the 3.5mm mildsteel
 Length  540mm
 Weight  3.5kg
 Package  steel case

ACCESSORIES:

 Crimping dies  16,25,35,50,70,95,120,150,185,240,300mm2
 Punches&die(Type C)   22.5,28.3,34.6,43.2,49.6,61.5mm
 Blade  1set
 Adapter for crimping  1pc
 Adapter for punching  1pc
 3/4",16UNDrawstud  1pc
 7/16",20UNDrawstud  1pc
 Spacer  1pc
 Sealing ring of cylinder  1set
 Sealing ring of safety value  1set


hydraulic toolhydraulic crimping tool

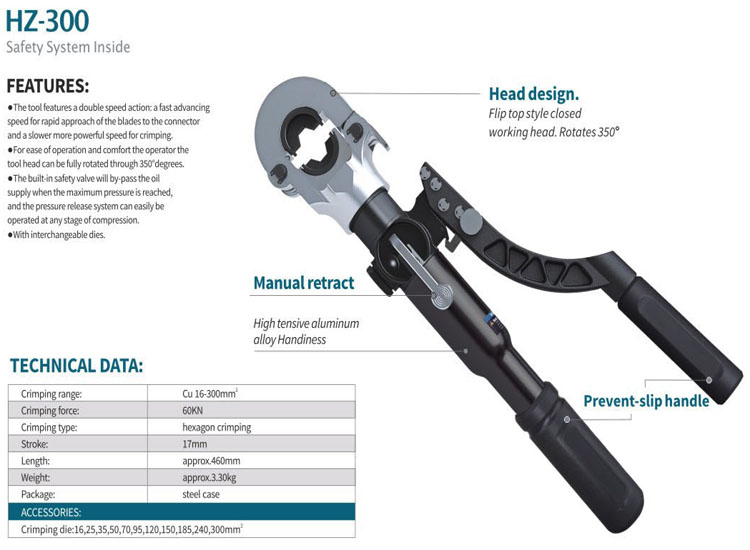

 hydraulic crimping tool HZ-300

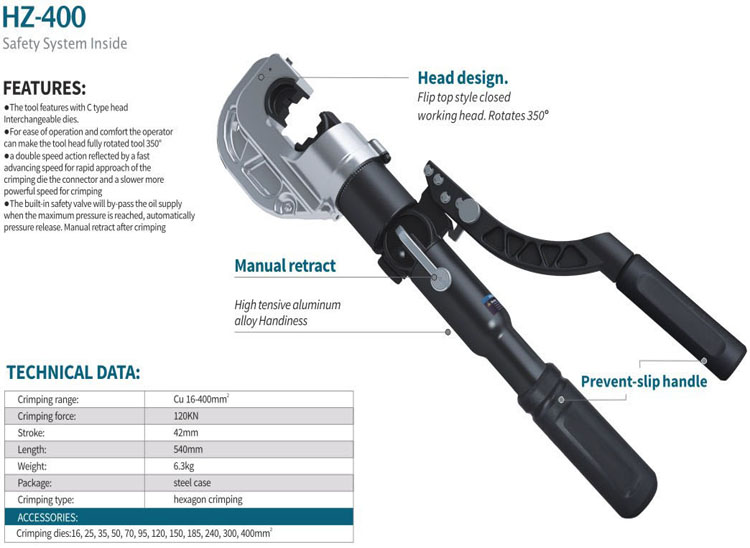

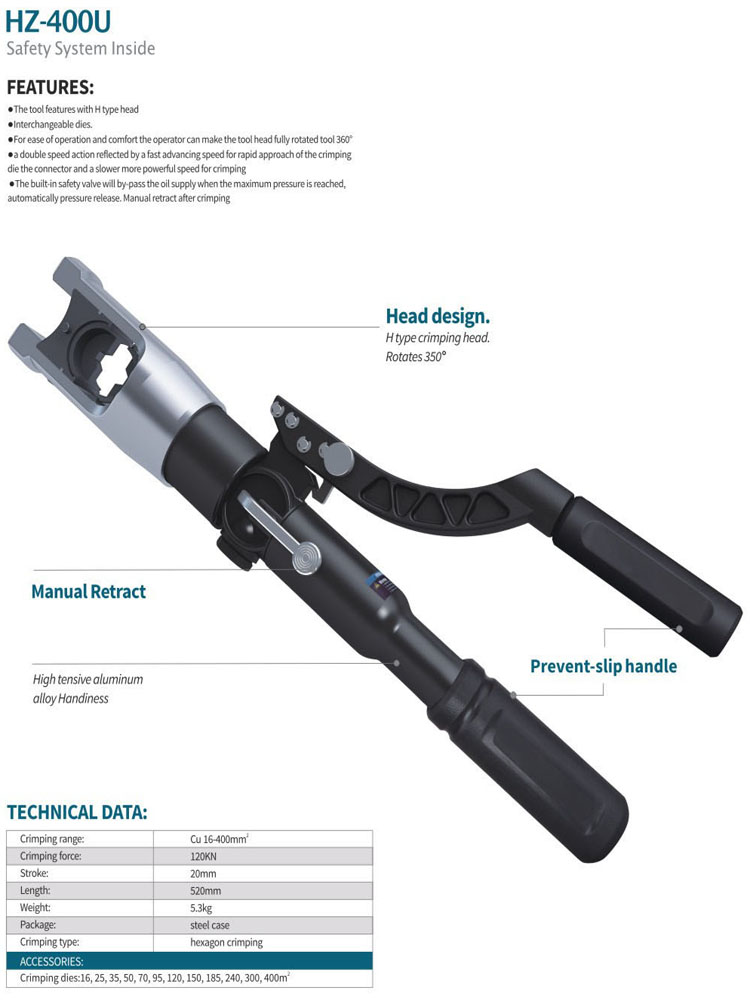

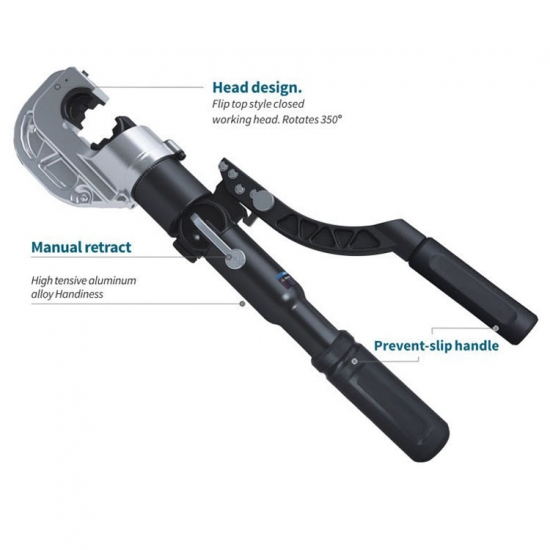

hydraulic crimping tool HZ-400hydraulic crimping tool HZ-400U

  QC Flow



FACTORY



Annual output value

over fifty million dollars

Production Cycle

40-90 days(base of different product and order quantity.)

Number of workers

1,000 workers

Plant area

360,000 square meters


  Exhibition

  BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers.

FAQ
     FAQ

1.Are you factory? Where is the location?

Yes: Office and Factory Address is like below:

91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008



2.What is your main product?

We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket.ceramic insulator insulator. We can accept OEM.



3.When was your company established? How many production lines do you have at present? How many employees?

Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).



4.Where is your major customer?

Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,



Welcome to visit our factory and start our business here.

For more about us,please feel free to contact us directly:

Tel: +86-0591-88000110 or +86-0591-88000140

Fax: +86-0591-88000112
