1,one head for crimping,cutting and punching
2,universal head rotates 350°，flip top style
3,two stage hydraulics
4,Automatic pressure release when crimp is complete
5,Manual retract after working
Product Origin:
ChinaBrand:
BONLEItem No.:
CYO-410,CYO-430,CYO-Shipping Port:
FUZHOULead Time:
15DAYSPayment:

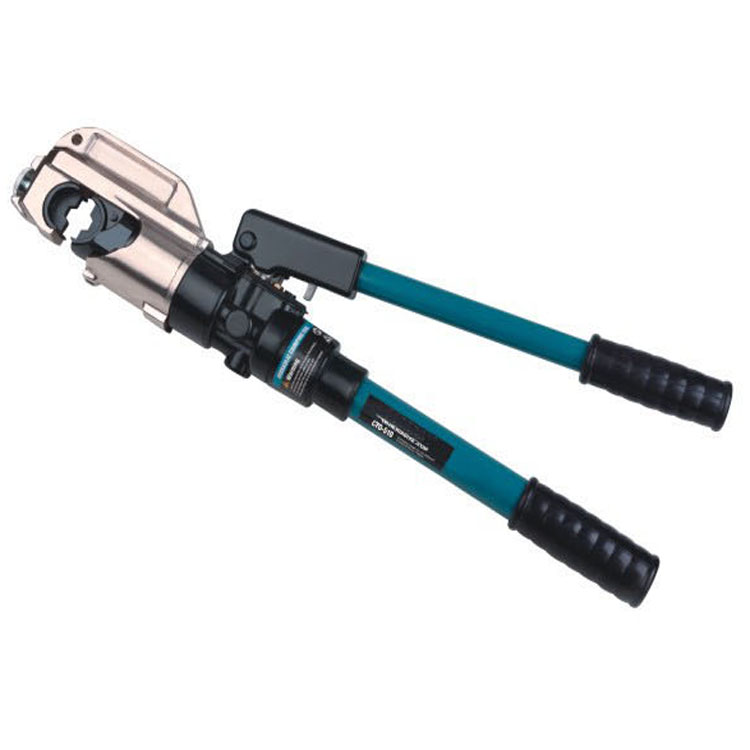

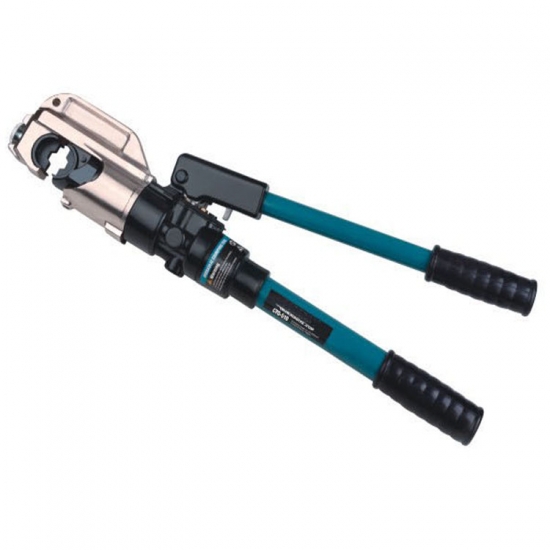

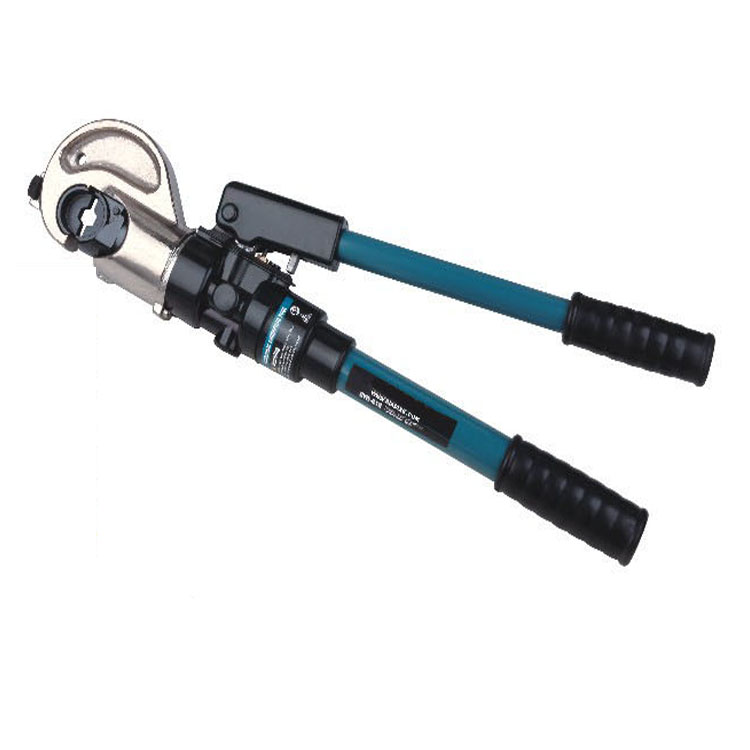

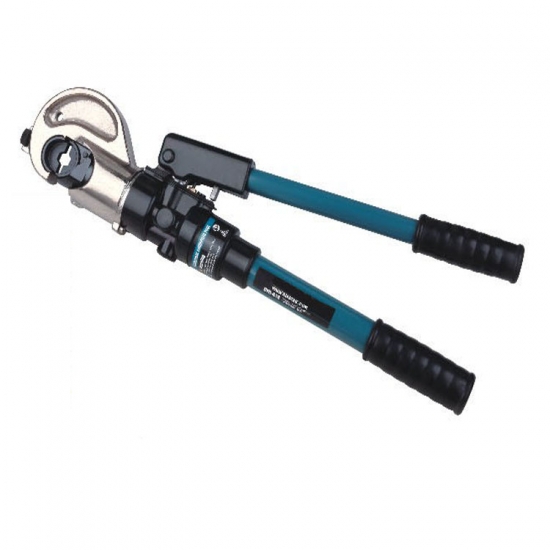

fob or cnfHome Hydraulic Wire Crimper Battery Lug Terminal Cable Crimping Tool CYO-410,CYO-430,CYO-510
TECHNICAL DATA:
| Type | CYO-410 | CYO-430 | CYO-510 |
| Working force | 116KN | 116KN | 126KN |
| Stroke | 30mm | 30mm | 38mm |
| Crimping range | Cu 50-400mm | Cu 50-400mm | Cu 50-400mm |
| Oil capacity | 145cc | 145cc | 145cc |
| Weight | approx.6.4kg | approx.7kg | approx.7.4kg |
| Weight of box | 1.7kg | 1.7kg | 1.7kg |
| Package | plastic box | plastic box | plastic box |
ACCESSORIES:
| Crimping dies | 50，70，95，120，150，185，240,300,400mm2 |
FEATURES:
1,Design to accommodate hexagonal dies for applying compression lugs to copper,aluminum conductors.
2,Two stage pumping action for rapid ram advance to the connector hold positon with minimum pumping action.
3,Manual retraction when the max pressure reached by twisting the handle.
4,The glass fiber operation insulates the stick,can bear the electric voltage 200kv,keeping on the minute.
5,180° rotatable head.
6,The pressure outside the body adjusts to press the valve,don't need the whole structure to lie down.
| Product Advantages |
| Production Process |
| QC Flow |
| Company Information |
|
About Us
BONLE Group professionally in power electronics manufacturing and export for many years. Till now sized with 7 factories for different product series. And build a long-term and close collaborative relationship with more than 30 Chinese domestic suppliers, which assures supplying completely for the substation and transmission lines project. Below we have 3 main business channels for different cooperations 1. General order business. 2. International tenders. 3. Substation &Transmission line construction projects. |
|
|
| Qualification Certificate |
| Exhibition |
| BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers. |
| FAQ |
1.Are you factory? Where is the location?
Yes: Office and Factory Address is like below:
91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008
2.What is your main product?
We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket. dpn defond push button switch. We can accept OEM.
3.When was your company established? How many production lines do you have at present? How many employees?
Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).
4.Where is your major customer?
Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,
