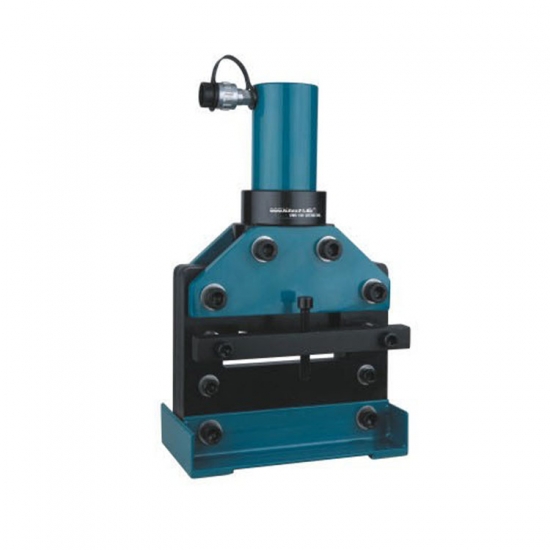

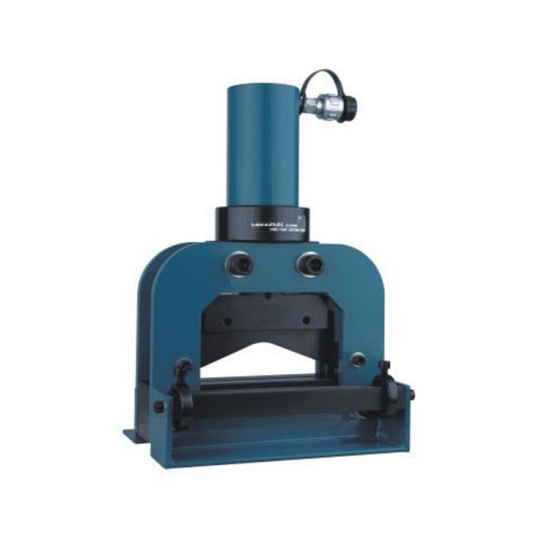

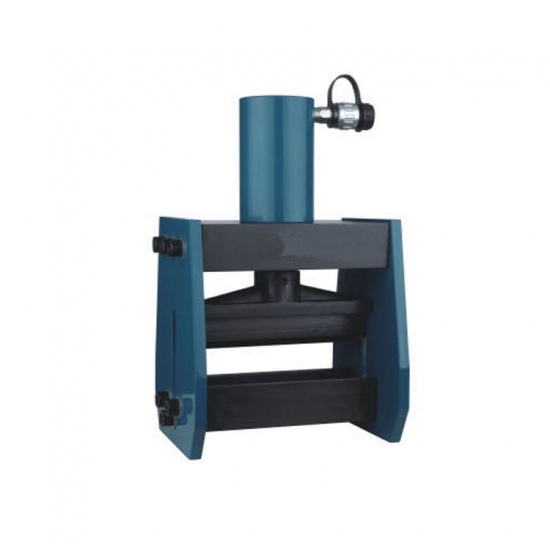

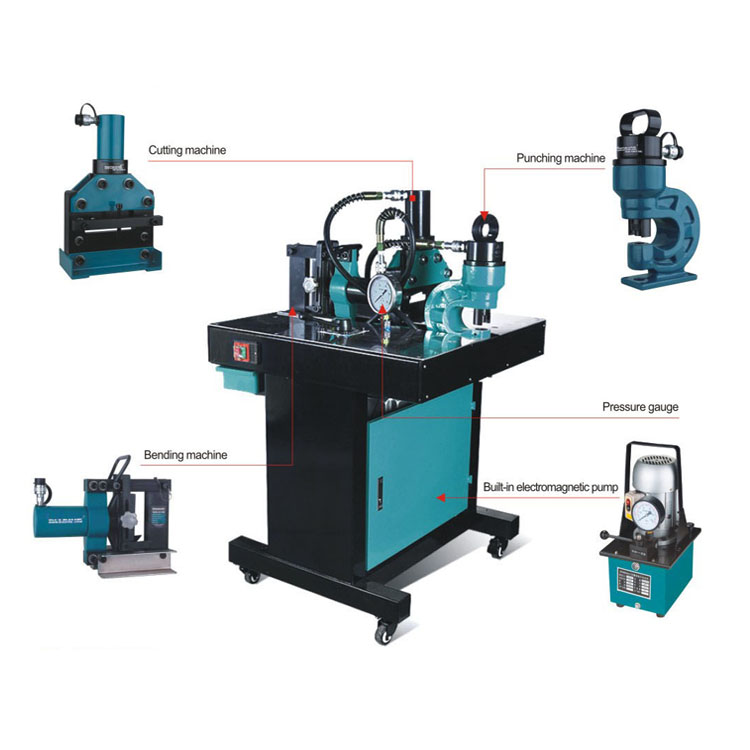

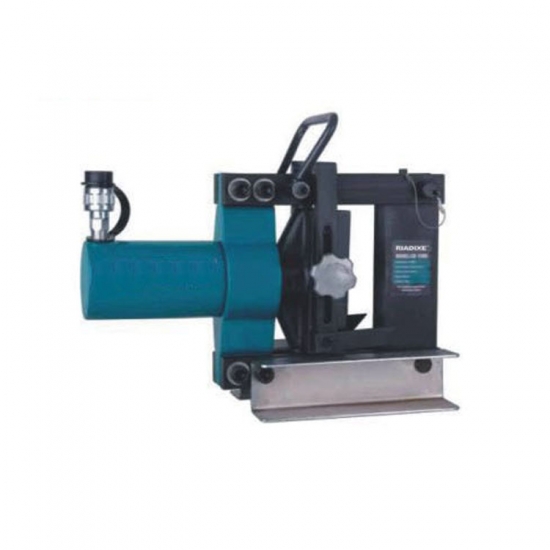

Multi-function:Cutting machine,Punching machine and Bending machine
Product Origin:
ChinaBrand:
BONLEItem No.:
DHYShipping Port:
FUZHOULead Time:
15DAYSPayment:
fob or cnfCutting punching bending multi-function busbar processing machine
TECHNICAL DATA:
| Type | DHY-150D | DHY-200D |
| Cut off the range | width≤150mm,thickness 3-10mm | width≤200mm,thickness 3-12mm |
| Bend range | width≤150mm,thickness 3-10mm | width≤200mm,thickness 3-12mm |
| Punching range | width≤150mm,thickness 3-10mm | width≤200mm,thickness 3-12mm |
| Standard punching die | Φ7-Φ20.5mm,customized | Φ7-Φ20.5mm,customized |
| Hole center to the edge | 95mm | 110mm |
| Input voltage | 220v/380v | 220v/380v |
| Rated working oil pressure | 700kgf/cm² 10000Psi | 700kgf/cm² 10000Psi |
| Tatal weight | 170kg | 2 |
PRODUCT SELECTION:
| Flat bend procession range | width 40-125,thickness of 4-10 |
| Embossing machine processing | width≤150mm,thickness ≤12.5mm |
| 300 hydraulic clamp range | copper terminal 16-300mm²,aluminum terminal 25-240mm² |
| 500 hydraulic clamp range | copper terminal 16-300mm²,aluminum terminal 25-240mm² |
| Product Advantages |
| Production Process |
| QC Flow |
| Company Information |
|
About Us
BONLE Group professionally in power electronics manufacturing and export for many years. Till now sized with 7 factories for different product series. And build a long-term and close collaborative relationship with more than 30 Chinese domestic suppliers, which assures supplying completely for the substation and transmission lines project. Below we have 3 main business channels for different cooperations 1. General order business. 2. International tenders. 3. Substation &Transmission line construction projects. |
|
|
| Qualification Certificate |
| Exhibition |
| BONLE has attend many professional electrical and power exhibitions at different countries for business development, especially our products and services have received lot of good feedbacks from customers. |
| FAQ |
1.Are you factory? Where is the location?
Yes: Office and Factory Address is like below:
91#Taiyu Rd, Fuwan Pian, Jinshan Industrial zone, Fuzhou, PRC 350008
2.What is your main product?
We are advantage in power electrical product manufacturing and exporting,have different product series in high voltage series like insulator, cutout fuse, lightning arrester etc, and some series in low voltage series like switch and socket. dpn defond push button switch. We can accept OEM.
3.When was your company established? How many production lines do you have at present? How many employees?
Our first plant founded in 1991, till now have sized with 7 factories for different product series. And we have 1500 employees (totally in all factories).
4.Where is your major customer?
Our major customers are from Mid-east, South-east Asia and South America, Africa. 5.Does the product you supply have quality guarantee and certificate? Yes,the product pass standard and required testing,
