For Cu/Al cable and Armoured cable
Product Origin:
ChinaBrand:
BONLEItem No.:
JCShipping Port:
FUZHOULead Time:
15DAYSPayment:
fob or cnfManual Cable Cutter for Copper/Aluminum Cables

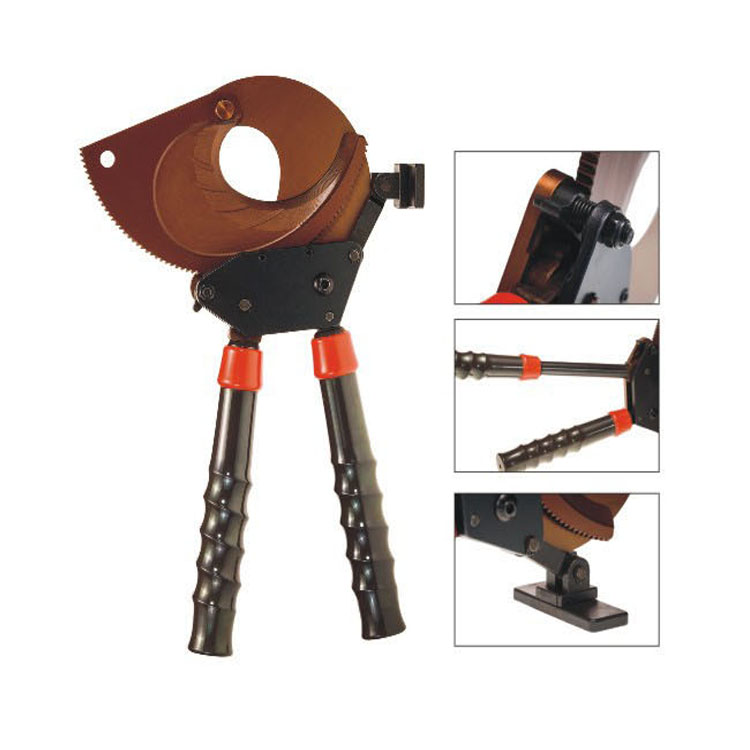

TECHNICAL DATA(JC-75):
| Type | JC-75 |
| Cutting rang | 75mm |
| Dimensions | 420*205*50mm |
| Weight | approx.3.6kg |
FEATURES:
Cut 3*120mm² copper core armored cable and Φ75mm following aluminum core armored cable
Handle can be retractable,comfortable grip
Ratchet mechartism is stable and reliable,blade durable

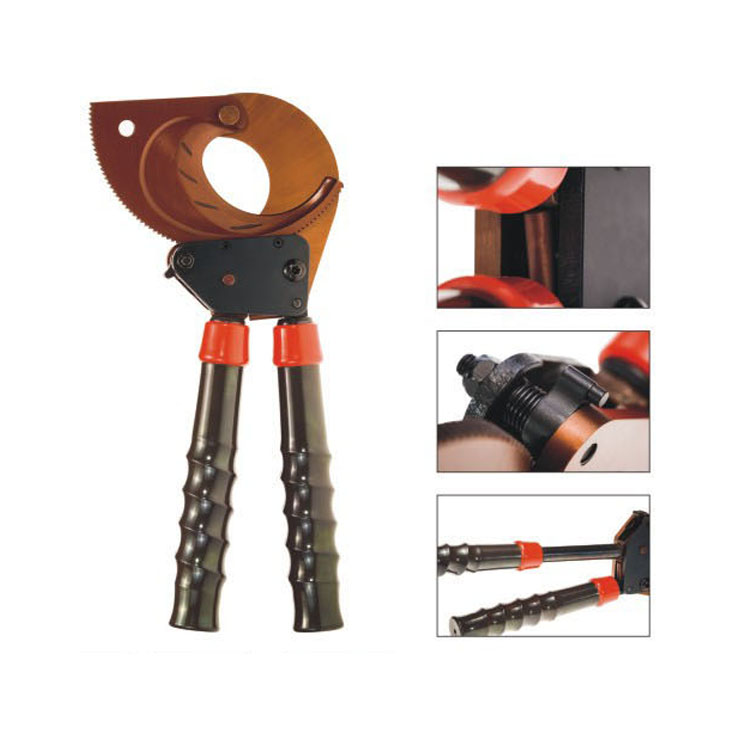

TECHNICAL DATA(JC-95):
| Type | JC-95 |
| Cutting rang | 90mm |
| Weight | approx.5.43kg |
| Dimentions | 445*265*50mm |
FEATURES:
Cut 3*185mm² following copper core armored cable and Φ90mm following aluminum core armored cable
Handle can be retractable,comfortable grip
Ratchet mechartism is stable and reliable,blade durable
Comes with work stand,easy to operate

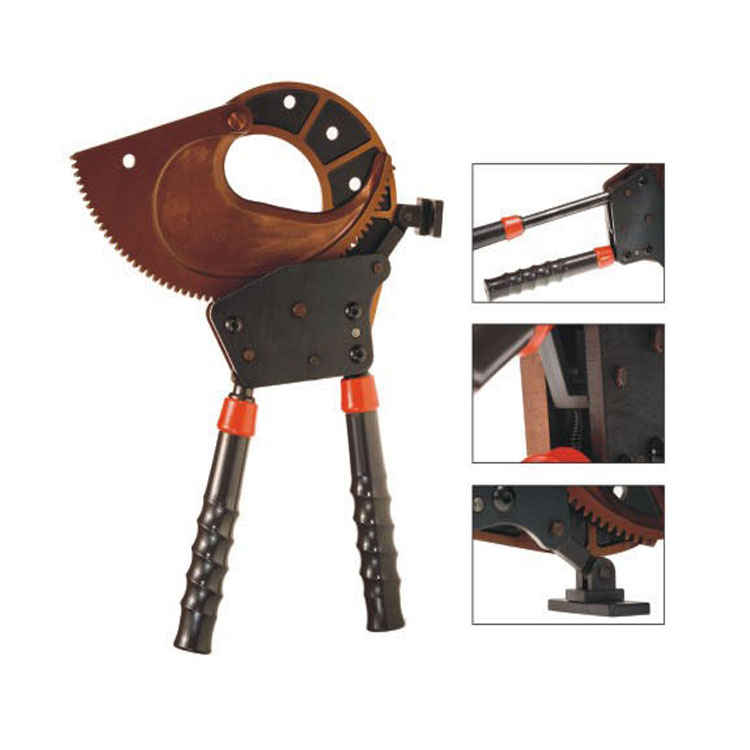

TECHNICAL DATA(JC-130):
| Type | JC-130 |
| Cutting rang | 130mm² |
| Weight | approx.8.11kg |
| Dimentions | 500*300*50mm |
FEATURES:
Shear Φ130mm following copper and aluminum core armored cable
Handle can be retractable,comfortable grip
Ratchet mechartism is stable and reliable,blade durable
Comes with work stand,easy to operate

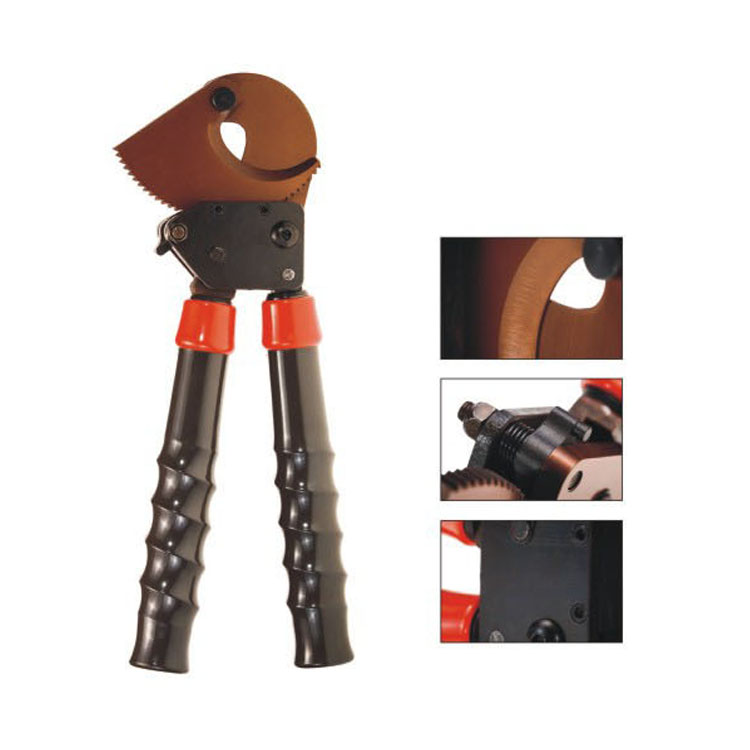

TECHNICAL DATA(JC-25):
| Type | JC-25 |
| Cutting rang | 40mm |
| Weight | approx.3.2kg |
| Package | 390*110*50MM |
FEATURES:
Shear Φ40mm(720mm²) the following copper ACSR and 150mm² steel stand
Handle can be retractable,comfortable grip
Ratchet mechartism is stable and reliable,blade durable
The blade is designed for shearing steel core and stand
